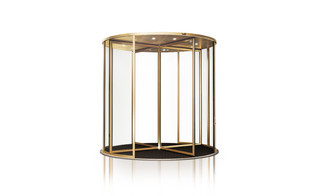

Revo.PRIME * Automatic revolving door system with low canopy height and narrow profile system for three- or four-leaf doors

Revo.PRIME
  • Very quiet running, low-wear drive solution with a canopy height of only 75 mm
  • Precise closing of the door leaves with the side walls
  • Effective insulation effect against draughts, weather and noise
  • Adjustable automatic speed setting, in line with the number of people passing through
  • Manual operation of the door possible, e.g. to carry out cleaning work
  • Can be networked, and integrated into the building automation via open standard (BACnet)
Show more
  • Independent error recognition and recording
  • Freely configurable inputs and outputs for different functions
  • Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
Contact us

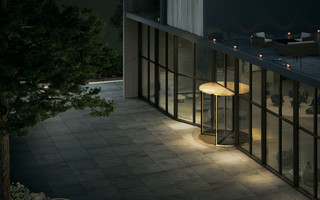

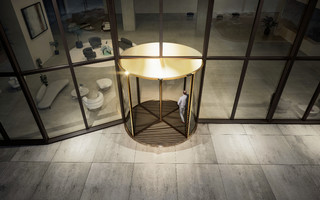

The most beautiful way to say welcome: the sophisticated Revo.PRIME revolving door makes a great impression in entrance areas with its minimal canopy height of just 75 mm, its narrow profile system of just 60 mm and a barely visible drive. Advanced drive technology also ensures the best possible access convenience and safety.

Application Areas

  • Three- and four-leaf door systems
  • Interior and exterior doors with high access frequency

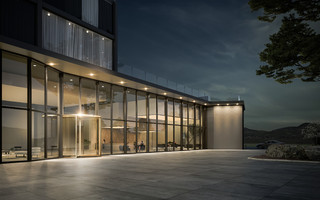

  • Representative building entrances with large incidence of light
  • Façades with slim mullion-transom constructions
  • Glass façades with the highest design standards
  • Inner diameter from 1800 to 3800 mm possible
  • Suitable profile systems are fine-framed profile systems with ISO and mono glass
Go to campaign page

Technical data

Revo.PRIME
Manual operation Yes
With speed limiter (optional) Yes
With positioning device (optional) Yes
Fully automatic operation Yes
Servo function No
Inner diameter (min.) 1800 mm
Inner diameter (max.) 3800 mm
For 3-leaf door systems Yes
For 4-leaf door systems Yes
Clear passage height 3500 mm

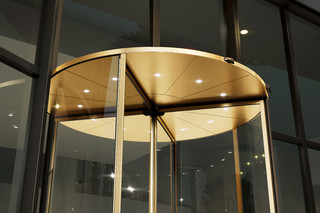

Canopy height (min.) 75 mm
Side elements version 10 mm LSG, 22 mm panel lining, 34 mm smooth-surface panel, Special glass on request
Version of roof structure optical sheet metal covering, waterproof roof with waterspout
Illumination with roof variant
Floor covering Entrance mat, Entrance mat according to customer wishes
Hot-air curtain system Electric air curtain, hot water air curtain, possible, depends on the ceiling construction
Night-time closer layout Inside, Outside
Night-time closer type Manual, Automatic
Night-time closer design 10 mm LSG, 22 mm ISO glass, 22 mm panel lining, Special glass on request
Lock Manual, Rod, electromechanical
Door handles horizontal or vertical Yes
Floor ring Yes
Underfloor operator No
Disabled person's button Yes
Standard conformity EN 16005
