Lock 2-leaf

IQ lock AUT * System solution for full panic doors with automated door leaves on both sides

IQ lock AUT

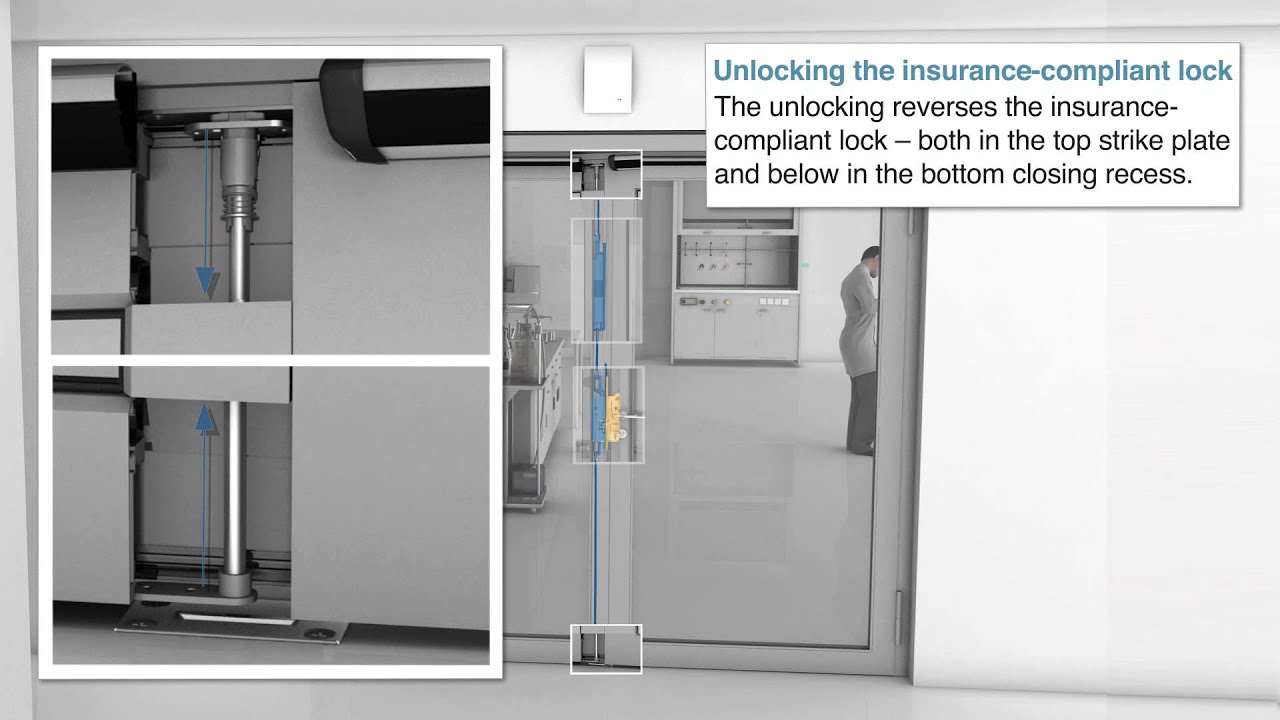

  • Motor-driven unlocking of door on active and passive leaf in less than three seconds
  • Mechanical self-locking brings the bolt into its locked position on the active and passive leaf
  • Unlocking of active leaf by activating passive leaf (full panic function)
  • Divided cross latch prevents the bolt from locking even under side-load
  • Electric sequential control on the active leaf ensures that the door will be locked safely
  • Different modes of operation available for every situation
Show more
  • Integrated feedback contacts on active and passive leaf enable complete door monitoring
  • Choice of sabotage monitoring or cylinder contact on active leaf
  • Locking in accordance with insurance requirements ensured
Contact us

Application Areas

  • Double leaf emergency exit and panic doors (left hand and right hand door)
  • Doors along escape and rescue routes
  • Fire and smoke protection doors (with MST 210 motor lock control, IO 420 extension module and on-site emergency power supply)
  • Smoke and heat extraction system fresh air doors
  • Access control systems
  • Can be combined with GEZE automatic swing door systems

Technical data

IQ lock AUT
DIN direction left / right
Service temperature -10 - 50 °C
Panic function / mechanical self-locking Yes
Feedback contacts for lock states Yes
Activation External contact
Current consumption 60 mA at 24 V; max. 1.5 A at 24 V, N/A
Connector cable length 10 m
