Corner fittings and pivot bearing

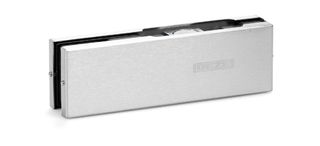

PT 20 * Top side-hung leaf corner fitting with mount for pivot bearing bolts (ø 15 mm)

GEZE PT 20 Glass fitting
  • Elegant cover caps made of polished or brushed stainless steel
  • Problem-free adjustment to glass thicknesses of 10 – 12 mm
Contact us

Application Areas

  • For full-glass doors
  • For glass thicknesses 10 and 12 mm
  • Door leaf weights up to 100 kg, door leaf widths up to 1,000 mm, door leaf heights up to 2,800 mm
  • For single-action and double-action doors
  • For internal and external systems
  • Suitable for single and double leaf swing doors

Technical data

PT 20
Type of installation Glass installation
Length 163 mm
Width 32 mm
Height 51 mm
Min. Glass thickness 10 mm
Max. Glass thickness 12 mm

Variants & Accessories
