Fan light and connector patches

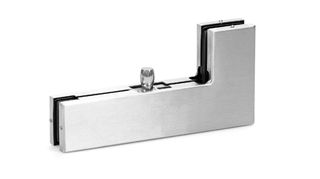

PT 40 * Glass Fitting angle fanlight fitting with pivot bearing bolts (ø 15 mm)

GEZE Glass Fitting PT 40 Upper pivot point (with link to fanlight and side fixed panel)
  • Elegant cover caps made of polished or brushed stainless steel
  • Problem-free adjustment to glass thicknesses of 10 – 12 mm
Contact us

Application Areas

  • For static toughened glass assemblies
  • For glass thicknesses 10 and 12 mm
  • For internal and external systems

Technical data

PT 40
Type of installation Glass installation
Length 217 mm
Width 32 mm
Height 105 mm
Min. Glass thickness 10 mm
Max. Glass thickness 12 mm

Variants & Accessories
