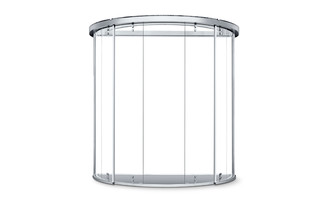

Slimdrive SCR GGS * Automatic curved sliding door system for constructing all-glass solutions

Slimdrive SCR GGS Automatic all-glass curved sliding door with glass roof and all-glass fittings
  • Very quiet running, low-wear direct current drive with a height of only 7 cm
  • System consists of two drives that are controlled separately from each other
  • High-quality stainless steel fittings open up a wide range of applications
  • Moving leaves are frameless and are attached to the roller carriage by means of two single point fixings.
  • The floor guide is attached to the glass with single point fixings.
  • 40 % more opening width than with linear sliding door drives
Show more
  • Wide range of drive variants and equipment options possible
  • Can be networked, and integrated into the building automation via open standard (BACnet)
  • Independent error recognition and recording
  • Freely configurable inputs and outputs for different functions
  • Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
  • Self-cleaning roller carriage reduces maintenance effort and costs
  • Various mechanical and electrical locks are optionally available
Contact us

Application Areas

  • 2- and 4-leaf all-glass door systems
  • Interior and exterior doors with high access frequency
  • Representative building entrances with large incidence of light
  • Façades with slim mullion-transom constructions
  • Glass façades with the highest design standards
  • Opening widths of 800 to 2300 mm possible
  • Door leaf weights up to maximally 100 kg

Technical data

Slimdrive SCR GGS
Barrier-free Yes
Adjustable opening speed (ventilation) Yes
Adjustable closing speed Yes
Opening width 2-leaf 800 mm - 2300 mm
Clear passage height 2500 mm
Canopy height (min.) 75 mm
Leaf weight (max.) 1-leaf 120 kg
Leaf weight (max.) 2-leaf 120 kg
Radius (min.) 1250 mm
Radius (max.) 2000 mm
Moving leaf version 10 mm ESG-H with GGS fitting system (GGS variant), Special glass on request
Side elements version 10 mm LSG, Special glass on request
Surface Powder-coated according to RAL, Anodised light alloy E6/EV1, colour anodised according to sample, Coated with polished stainless steel, coated with grit 240 stainless steel, special coating on request
Version of roof structure optical sheet metal covering, Glass roof
Illumination not possible with glass roof
Floor covering Entrance mat, Entrance mat according to customer wishes
Hot-air curtain system possible, depends on the ceiling construction
Off-centre façade connection Yes
Special functions on request Yes
Operation Programme switch DPS, Programme switch TPS, Control via building management system
Standard conformity DIN 18650, EN 16005
