TS 1500 with hold-open arm

Link arm TS 4000 / 2000 * With mechanical hold-open device

Link arm TS 4000/2000
  • Can be used up to 70 mm reveal depth with transom installation
Contact us

Link arm TS 4000 / 2000

Application Areas

  • To hold open non-fire protection doors
  • Right and left single-action doors

Technical data

Link arm TS 4000 / 2000
Hold-open function Mechanical
Hold-open device can be overridden Yes
Hold-open range 70 ° - 150 °

Downloads

Product shot

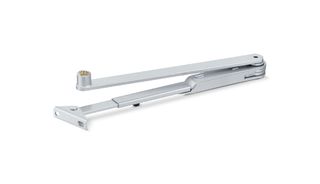

Link arm TS 4000/2000 Product shot (668282)
LABELLING OBLIGATION:  © GEZE GmbH

Product data sheet

Link arm TS 4000 / 2000 Product data sheet EN
Download (.PDF | 446 KB)

Installation instructions

Installation instructions (759040)
Download (.PDF | 6 MB)
Installation instructions (766340)

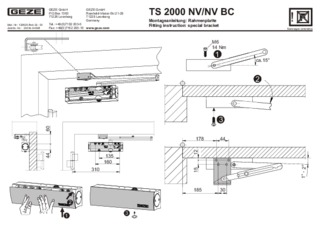

Download (.PDF | 288 KB)
Installation instructions DE EN FR (763480)
Download (.PDF | 2 MB)

Supplementary sheet

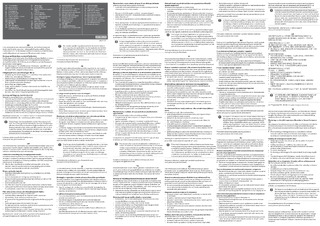

Supplementary sheet BG CS DA DE EL EN ES ET FI FR HU IT LT LV MT NL PL PT RO RU SK SL SV ZH (759073)
Download (.PDF | 560 KB)
Supplementary sheet DE EN (768969)
Download (.PDF | 764 KB)

Environmental declaration

Environmental declaration EN (2544798)
Download (.PDF | 263 KB)

Installation drawing

Installation drawing (762614)
Download (.PDF | 58 KB)
