TS 4000 IS

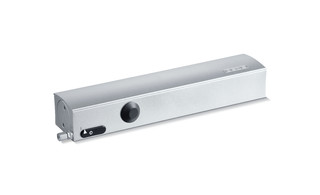

TS 4000 IS closer body * Main body for overhead door closer with link armEN 1-6 with closing sequence control

GEZE TS 4000 IS Closer Stangenschließsystem für zweiflügelige Feuer- und Rauchschutztüren mit Schließfolgeregelung
  • Closing force can be variably adjusted from the front
  • Visual closing force display ensures correct setting
  • Closing seed can be adjusted from the front via valve
  • Integrated closing sequence control
  • Door closer, can be used for right and left hand doors
  • Door closer, can be used for leaf and transom installation
Show more
  • Minimal installation effort due to low number of individual parts and quick setting
  • Flexible repositioning of the Bowden cable release mechanism in the frame, e.g. with passive leaf lockings
Contact us

Application Areas

  • Fire and smoke protection doors
  • Double leaf single-action doors
  • Single-action doors up to 2800 mm hinge clearance and 1400 mm leaf width

Technical data

TS 4000 IS closer body
Closing force in accordance with EN 1154 EN 1 - 6
Leaf width (max.) 1400 mm
Type of installation Door leaf installation hinge side, Transom installation opposite hinge side
Opening angle (max.) 180 °
Identical design for DIN left and DIN right Yes
Standard conformity EN 1154:1996/A1:2002/AC:2006, EN 1158
Suitability for fire protection doors Yes
Length 287 mm
Width 46 mm
Height 60 mm
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via link arm
Back check integrated No
Position of closing force adjustment Front
Visual closing force display Yes
Safety valve againts overload Yes
Thermo-control valves Yes
Closing sequence control integrated Yes
