RSZ 7 * Extendable smoke switch control unit for all GEZE hold-open devices
- Telescopic function for bridging overhangs of up to 30 mm
- Connection to 230 V power supply and 24 V DC supply of the hold-open device
- Voltage supply of the hold-open system is interrupted in the case of an alarm and the doors close
- Integrated smoke switch with automatic adaption of the alarm threshold
- Compensates for light contamination of the smoke chamber and thus increases the service life
- Visual display of the current control unit status
- Additional smoke switches can be connected
Application Areas
- Approved for all GEZE hold-open devices for the early detection of fire and smoke
- Difficult lintel situations, for example with too little space above the smoke chamber
- Installation above the active leaf on the vertical wall
- Installation possible with surface-mounted line-feed
Installation situations in reference objects and videos
EN | Fire protection | RSZ 7 + FA GC 170
// RSZ 7 The new RSZ 7 smoke switch control unit has an adjustable telescopic function and is therefore a flexible solution for early detection of fires even in unfavourable lintel situations, for example where there is little room left over the smoke chamber. // FA GC 170 The GEZE FA GC 170 wireless extension connects the ceiling-mounted detector and manual trigger switch wirelessly with the lintel-mounted detector of GEZE hold-open systems.
GEZE | RSZ 7 smoke switch control unit with telescope function
Secure solution for unfavourable lintel situations that leave too little space above the smoke chambers: The RSZ 7 smoke switch control unit has a new telescope function. The smoke detector can be extended, making it possible to bridge overhangs of about 30 mm.

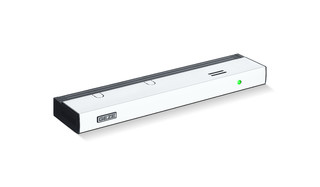

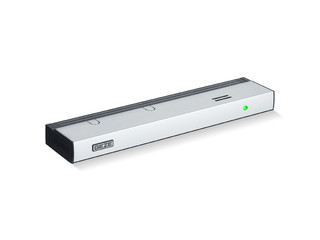

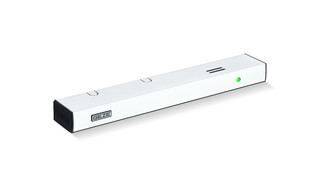

RSZ 7 smoke switch control unit
New solution for unfavourable lintel situations, which, e.g. leave too little space above the smoke chambers: The smoke switch control unit RSZ 7 has a telescope feature. The smoke detector can be extended, thus allowing overhangs of about 30 mm to be bridged. © GEZE GmbH
Technical data
| RSZ 7 | |
| Dimensions | 346 x 30 x 55 mm |
| Ambient temperature | -5 °C - 50 °C |
| Connection of additional smoke switches | 2 |
| Visual status display | Yes |
| Supply voltage | 230 V |
| IP rating | IP20 |
| Line-feed | Back side, At the side, Top, Below |
| Area of application | Inside |
Downloads
Product shot

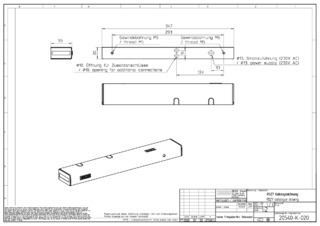

Product scale drawing
Product data sheet
Installation instructions
Wiring diagram

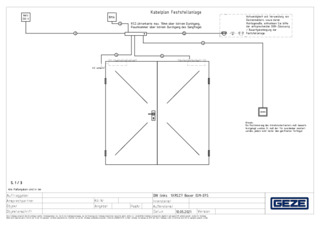

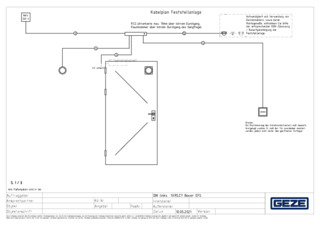

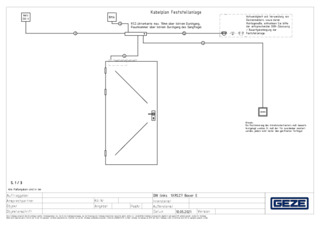

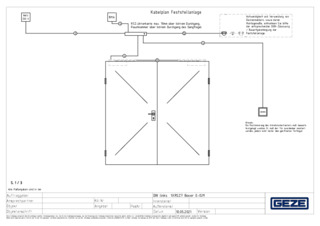

Cable plan
Declaration of conformity
Tender texts
Product brochure
