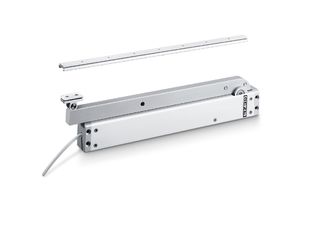

RWA K 600 G * Retractable arm drive for installation on doors and windows with fixed connection via guide rail

RWA K 600 G Retractable arm drive Can be used on both doors and windows. The door cannot be passed through freely due to the fixed connection of the drive with one door leaf by means of a guide rail.
  • 90° window opening in less than 60 seconds
  • Powerful drive with high torque
  • Connector cable easy to replace by means of plug
  • Integrated status contact for feedback signals
  • Integrated Syncro module that can operate a maximum of two drives without an external control unit
  • Tested as a natural smoke and heat exhaust ventilation device (SHEV) in accordance with EN 12101-2
Contact us

Application Areas

  • Smoke and heat extraction and natural ventilation (24 V)
  • Inward- and outward-opening windows with bottom-hung, top-hung and side-hung leaves
  • Installation on wooden, PVC or metal windows
  • Leaf and frame installation
  • Door installation possibl

Technical data

RWA K 600 G
Dimensions 421 x 40 x 86 mm
Housing material Aluminum
Compressive force 600 N
Tensile force 600 N
Voltage at operation 24 V ± 25 %
Operating voltage 24 V DC
Current consumption 1.4 A
Residual ripple 20 %
Duty rating 30 %
Connector cable length 5 m
Special length of connector cable 10 m
Min. core cross section 0.5 mm²
Number of cores 5 cores
Service temperature -5 - 75 °C
IP rating IP32
protection rating III
Syncro function Yes
Adjustable opening speed (ventilation) Yes
Additional locking available Yes
Type of additional locking mechanism Locking drive
Type of stroke shortening Synchronising unit
End position cut-off extended Internal path sensor
End position cut-off retracted Internal path sensor
Overload cut-off Yes
SHEV tested Yes
Number synchronisation drive units 2
Bottom-hung window INWARD-opening frame installation Yes
Bottom-hung window inward opening leaf installation Yes
Bottom-hung window OUTWARD-opening frame installation Yes
Bottom-hung window OUTWARD-opening leaf installation Yes
Side-hung window INWARD-opening frame installation Yes
Side-hung window INWARD-opening door leaf installation Yes
Side-hung window OUTWARD-opening frame installation Yes
Side-hung window OUTWARD-opening door leaf installation Yes
Top-hung window INWARD-opening frame installation Yes
Top-hung window INWARD-opening leaf installation Yes
Top-hung window OUTWARD-opening frame installation Yes
Top-hung window OUTWARD-opening leaf installation Yes
